Product Description

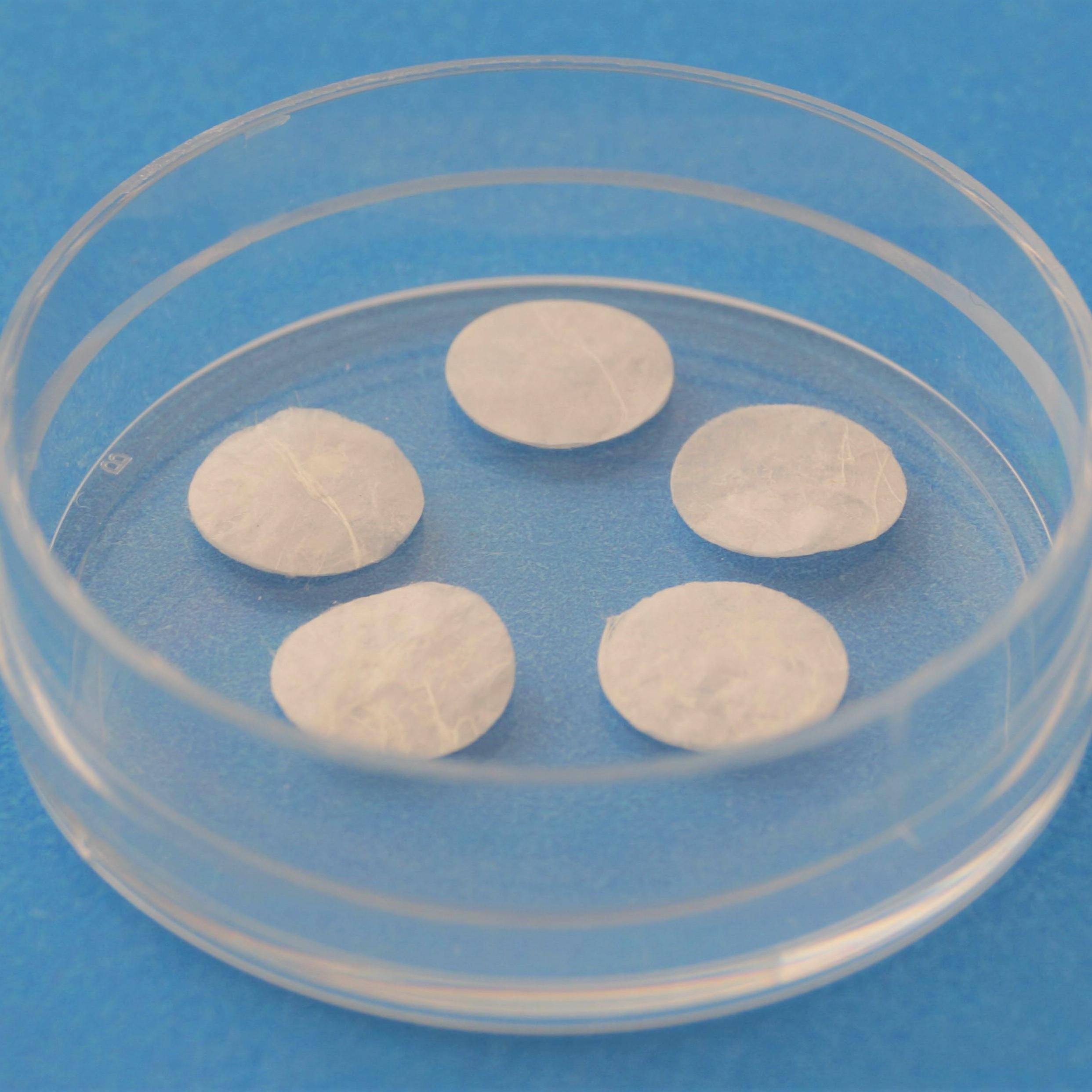

Electrospun Gelatin Discs are fabricated using electrospinning techniques to create a construct with a unique structure suitable as a biomimetic three-dimensional (3D) scaffold. The product contains overlaid electrospun filaments creating a porous network, which permits cells and nutrients to flow completely through the pores and provides an increased surface area for cell attachment, growth and migration.

Electrospun Gelatin Discs are lightly cross-linked for increased mechanical strength and durability for short and long-term tissue culture experiments, yet is still biodegradable over the longer-term. The average filament diameter typically ranges from 500 nm to 1.5 microns. The electrospun gelatin discs are approximately 8 mm in diameter and 1-2 mm thick. The electrospun discs fit into a 48 well culture plate or larger. Each package contains five discs. This product is sterilized and ready-to-use.

Table 1:

Parameter, Testing, and Method  Electrospun Gelatin Discs #5214
Disc Diameter 8 mm
Package Size 5 Discs/Package
Disc Thickness 0.1-0.2 mm
Fiber Diameter 500 nm - 1.5 um
Storage Temperature Room Temperature
Shelf Life Minimum of 6 months from date of receipt
Sterilization Method Irradiation
Gelatin Source Porcine Gelatin



Directions for Use

Download the full PDF version or continue reading below:

  1. Preparation and Seeding:

Note: Cell attachment to the disc is generally the most critical step in tissue culture. Temperature, pH, gas exchange and cell concentration can affect the rate and efficiency of attachment. Optimum seeding rate depends on the type of cell being cultured.

  1. Aseptically remove the Electrospun Gelatin Discs from the packaging in a laminar flow work station.
  2. Carefully place the discs into the wells of a 48 well tissue culture plate or larger using a sterile instrument.  Be careful not to damage the product as it is being transferred.  It is recommended to use non-treated tissue culture plasticware.
    Note: Tissue-coated plasticware may need to be coated with agarose to prevent cell attachment to the plastic and promote attachment to the disc.
  3. Suspend cells at desired concentration (approximately 5,000 cells/cm2) and dispense sufficient volume of cell solution on top of the disc placed in the well.

Note: Avoid dispensing the cell solution too rapidly as this may cause damage to the sponge.

  1. Transfer to a 37ºC incubator for about 1 – 2 hours to allow for initial cell attachment.
  2. After 1 – 2 hour, remove the plate from the incubator and check for cell attachment.   Additional testing may be required to optimize the time it takes for the cells to attach to the discs.  Check the morphology of the cells. Cell adherence and spreading will dictate the time needed for attachment.
  3. Once the cells have adequately attached to the disc, increase the final volume in each well to fully cover and provide adequate medium for the culture system.
  1. Changing the Media:
  1. Change the media 24 to 36 hours after the initial seeding.  The frequency of changes will be determined by cell type, cell attachment efficiency, and pH. More frequent medium changes may be required compared to 2D culture systems.
  1. Harvesting of Cells:

Note: Protease digestion is the standard method of releasing cells from the discs. The strength of the attachment of the cells to the discs will vary from cell line to cell line. The enzyme concentration and digestion time will vary depending upon the activity of the enzyme and the confluence of the cells.  Collagenase and/or trypsin may be the preferred method.

  1. Washing the discs with EDTA-PBS may assist the protease digestion. Add sufficient volume to cover the disc.
  2. Aspirate the EDTA-PBS solution from the well.
  3. Add sufficient dissociation solution to the well to fully submerge the discs.
  4. Transfer to a 37ºC incubator.  Check for cell detachment periodically.
  5. Once the cells have fully detached, remove the cells and dispense in a centrifuge tube.
  6. Centrifuge the cells as required.

Product Certificate of Analysis

No result for .

Safety and Documentation

Safety Data Sheet

Certificate of Origin

Product Disclaimer

This product is for R&D use only and is not intended for human or other uses. Please consult the Material Safety Data Sheet for information regarding hazards and safe handling practices.
