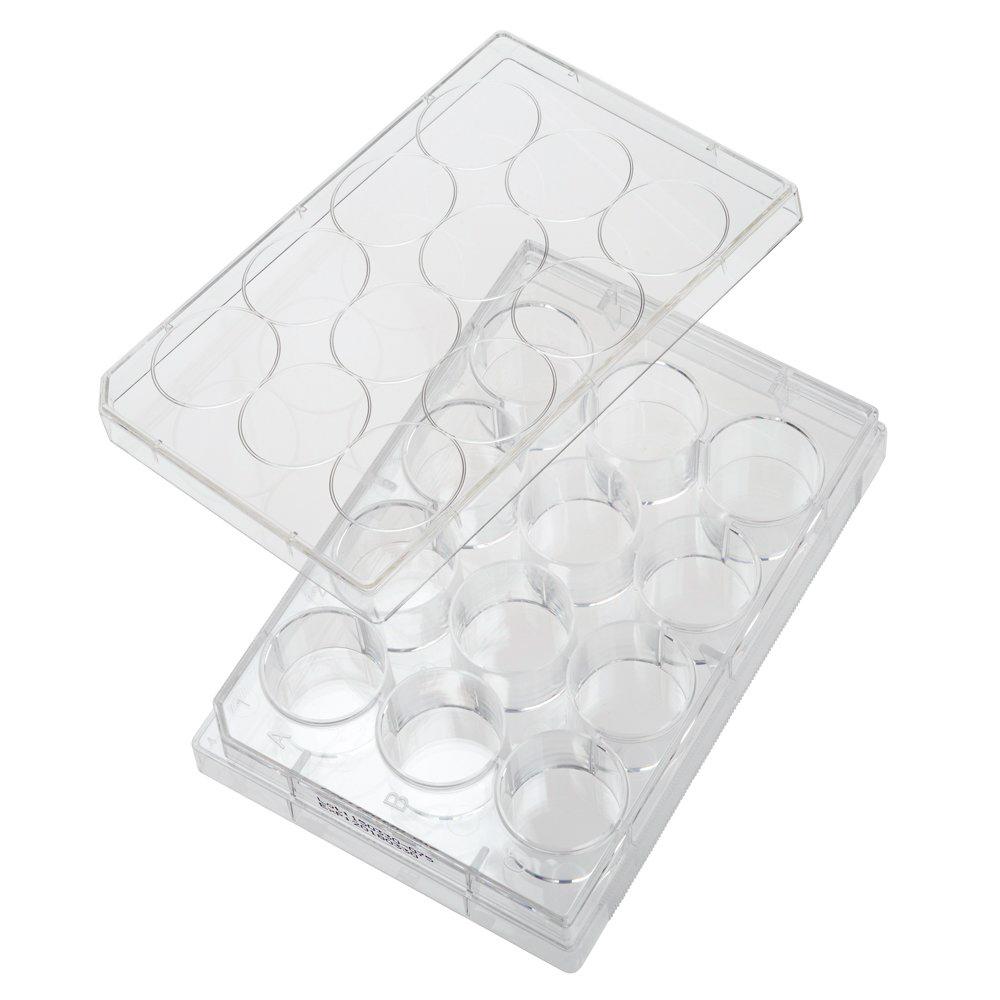

Product Description

PureCol® Collagen Coated, 12-well Plates with a flat bottom have a uniform and consistent application of high quality Type I collagen on clear polystyrene surface. Plates are compatible for use with all common dispensers, readers and washers. Plates are aseptically processed and are non-pyrogenic. Plates are available in quantities of 5 plates per sleeve. Plates need to be rinsed with 1X media or PBS prior to seeding cells.


Parameter, Testing, and Method PureCol® Coated 12-well Plates #5439
Sterilization Method Aseptically Processed
Size 12-Multiwell Plate
Collagen Used PureCol® Type I
Storage Temperature 2-30°C

Quantity per Package

5 Plates
Lid Anti-condensation Rings

Well Rim

Shelf Life Minimum of 6 months from date of receipt
Plate Polymer Polystyrene
Tisue Culture Treated Prior to Coating Yes
Growth Area per Well 3.5 cm2
Typical Working Volume per Well 1.0-2.0 mL


Need a custom coating or plate format? Learn more about our capabilities and options.

Product Q & A

Please review our collagen hydrogel whitepapers found here:

Please visit our collagen gelation diagnosis page:

We completed a study to show that DNA is completely destroyed at pH 2, and demonstrated that our collagen products do not contain DNA.

The collagen is fully hydrolyzed. The amino acid analysis is done using the Waters AccQ-Tag derivatization method. During the acid hydrolysis step, asparagine (N) is converted to aspartic acid (D) and glutamine (Q) is converted to glutamic acid (E). Tryptophan (W), if present, is destroyed during acid hydrolysis. Experimentally, one can determine the picomoles (pmol) of each amino acid per injected detected using amino acid standards.For the concentration determination, the total number of pmol of each amino acid is summed to get the total pmol of the 18 amino acids detected. The total pmol amino acids is divided by the theoretical number of amino acid residues in collagen based on the published sequence. The result is the pmol of collagen injected. The result is then multiplied by the dilution and 300,000 is used as the collagen molecular weight to get to mg/mL. The molecular weight of collagen is not well agreed upon.

Diluting with 1X PBS (rather than water or 0.01 N HCl) would have an effect for coating purposes.   It would change the pH of the diluted collagen solution from acid to neutral pH. The pH change will transform the collagen molecules from a molecular form to a fibrillar form; and then the nature of coating surface will be changed from a monomeric coating to a fibrillar coating.

The major collagen molecular species in our Type I collagen products are monomers (approx. 70%), but there are dimers, trimers and a few percentages of oligomers too (approx. 30%) with some minor amounts of collagen fragments. The collagen monomer is a rod shaped molecule with 300 nm in length and 1.5 nm in diameter. The dimer, trimer and oligomer are 600 nm, 900nm and even longer in length respectively. According to the coating procedures, the collagen molecules are attached to the charged polystyrene surface randomly by charge or affinity in acid conditions during the 1-2 hrs incubation period at 37°C, and any unattached materials are removed by aspiration and rinsing. Therefore, the coated surface is a single layer of collagen monomer, dimer, trimer and oligomer mixtures. The thickness of the mono-molecular layer is dependent on how those molecules are attached on the surface. The coating density thickness would generally be characterized as a 1 molecule thickness which could be ranging from a few nanometers to a few hundred nanometers with the whole surface being covered by collagen.

The net charge of Type I collagen products’ (PureCol®, Bovine Collagen and VitroCol®, Human Collagen) molecule is directly related to the pH.  At an acidic pH, the amino acids (zwitterions) along the collagen molecule are positively charged, making the entire collagen molecule positive. At the isoelectric point (or zone) of collagen, around pH 7-8, the amino acids along the collagen molecule are positively and negatively charged, making the net charge of the collagen molecule close to zero. At a basic pH, the amino acids along the collagen molecule were negatively charged, making the entire collagen molecule negative.

Further, the nature of the charge of the collagen coating surface will be dependent on the type of coating applied. For a monomeric collagen coatings when the collagen is applied under an acidic pH condition, the surface is positively charged. If the surface is rinsed with pH neutral buffer or media then it will change the charge of the collagen surface net charge close to zero. For a 3D gel coating, the collagen prepared under neutral pH; the net charge of the collagen surface is close to zero.

Using rotary shadowing technique under transmission electron microscopy, it was found that our collagen, on average, consists of approximately 80% monomers, 13% dimers, trimers, and oligomers with the remaining 7% collagen fragments.

Yes. The collagen molecule in PureCol, Nutragen, VitroCol, and all of our other Atelo collagen products were prepared from native collagen matrix by pepsin treatment under controlled conditions to remove the non-helical portion, telo-peptides, only and the helical portion is intact. In this case, the enzymatic active sites for MMP (Matrix Metalloproteinase), such as for Mammalian Collagenase Matrix Metalloproteinase 8 (MMP-8), on the molecule was preserved.

These pepsin treated collagen products should behave as native intact collagen.

TGF beta would have been digested with the pepsin enzymatic digestion step. It was undetectable by SDS PAGE silver stain as well. We didn’t do any specific measurements by ELISA however but presences of TGF beta is not anticipated.

We primarily use the Biuret method, but we also use BCA, AAA, and hydroxyl-proline assays.

- Collagen solutions that are frozen tend to have issues forming 3D hydrogels, and will likely not work. The solutions should still be good for 2D coatings.

- Collagen solutions that are left out at room temperature for extended periods of time may show signs of degradation, which will affect the formation of 3D hydrogels. It is likely still fine for 2D coatings.

Our recommendation is this: If you are using the product directly for a publication, we highly suggest buying a new bottle if the one you have was compromised.

In the publication "Fibroblast Promotes Head and Neck Squamous Cell Carcinoma Cells Invasion through Mechanical Barriers in 3D Collagen Microenvironments," they reported the porosity of FibriCol® type I atelocollagen hydrogels prepared at various concentrations, as reported below:

1 mg/ml = 5.7 + 2.3 μm

2 mg/ml = 3.7 + 1.5 μm

4 mg/ml = 1.3 + 0.7 μm

8 mg/ml = 0.8 + 0.4 μm


We can say that our coating saturates the available culture surface with a dense layer of collagen that is stable and cannot be washed off.

The “coating density” is represented by an array of molecules packaged at maximum, area-filling density, in a mono-molecular layer onto the surface.

The absolute mass of coated collagen per surface area depends on the Stoke’s radius and shape of the specific ECM being coated, yielding coating densities in the range of  0.2 – 0.4 micrograms of protein per square centimeter of available surface.

Product References

Because PureCol® has been cited in over 2000 publications, we have only posted a few below:

Sorensen, Jacob R., et al. "An altered response in macrophage phenotype following damage in aged human skeletal muscle: implications for skeletal muscle repair." The FASEB Journal (2019): fj-201900519R.

Sorensen, Jacob R., et al. "An altered response in macrophage phenotype following damage in aged human skeletal muscle: implications for skeletal muscle repair." The FASEB Journal (2019): fj-201900519R.

Colaço, E., et al. "Hierarchical Collagen-Hydroxyapatite Nanostructures Designed Through Layer-by-Layer Assembly of Crystal-Decorated Fibrils." J., Hierarchical Collagen-Hydroxyapatite Nanostructures Designed Through Layer-by-Layer Assembly of Crystal-Decorated Fibrils (May 13, 2019)(2019).

Schwerdtfeger, Luke A., et al. "Human colon function ex vivo: Dependence on oxygen and sensitivity to antibiotic." PloS one14.5 (2019): e0217170.

Cardoso, Ana, et al. "MiR-144 overexpression as a promising therapeutic strategy to overcome glioblastoma cell invasiveness and resistance to chemotherapy." Human molecular genetics (2019).

Steele, Hannah E., et al. "Mechanotransduction of mitochondrial AMPK and its distinct role in flow-induced breast cancer cell migration." Biochemical and biophysical research communications 514.2 (2019): 524-529.

Gehwolf, Renate, et al. "Global Responses of Il-1β-Primed 3D Tendon Constructs to Treatment with Pulsed Electromagnetic Fields." Cells 8.5 (2019): 399.

Alexander, Frank, Sebastian Eggert, and Dorielle Price. "Label-Free Monitoring of 3D Tissue Models via Electrical Impedance Spectroscopy." (2019): 1-24.

Matysik-Woźniak, Anna, et al. "Examination of Kynurenine Toxicity on Corneal and Conjunctival Epithelium: In vitro and in vivo Studies." Ophthalmic research (2019): 1-12.

Compton, Clayton, et al. "Reconstitution of the Ventricular Endocardium Within Acellular Hearts." Regenerative Engineering and Translational Medicine (2019): 1-11.

Müller, A. L., et al. "4. Identification of miR-301a in Primary Human Atrial Fibroblasts and Bone Marrow-Derived Mesenchymal Progenitor Cells to Attenuate Endogenous Differentiation into Pro-Fibrotic Cells." Differentiation of Primary Human Pro-Fibrotic Mesenchymal Cells Influenced by Extracellular Matrix Environment Determined by Micro-RNA Expression (2018): 130.

Doblinger, Nina, et al. "Impact of hydroxyethyl starch and modified fluid gelatin on granulocyte phenotype and function." Transfusion (2019).

Elisabeth, et al. "Pro-Inflammatory Responses in Human Bronchial Epithelial Cells Induced by Spores and Hyphal Fragments of Common Damp Indoor Molds." International journal of environmental research and public health 16.6 (2019): 1085.

Dodmane, Puttappa R., et al. "Biphasic changes in airway epithelial cell EGF receptor binding and phosphorylation induced by components of hogbarn dust." Experimental lung research 44.10 (2018): 443-454.

McClellan, Alyce, et al. "A novel mechanism for the protection of embryonic stem cell derived tenocytes from inflammatory cytokine interleukin 1 beta." Scientific reports 9 (2019).

Wang, Weiling, et al. "Aquaporin-3 deficiency slows cyst enlargement in experimental mouse models of autosomal dominant polycystic kidney disease." The FASEB Journal(2019): fj-201801338RRR.

Teo, Jye Yng, et al. "Surface tethering of stem cells with H2O2-responsive anti-oxidizing colloidal particles for protection against oxidation-induced death." Biomaterials 201 (2019): 1-15.

Gehwolf, Renate, et al. "3D-Embedded Cell Cultures to Study Tendon Biology." (2019): 1-11.

Product Certificate of Analysis

No result for .

Product Disclaimer

This product is for R&D use only and is not intended for human or other uses. Please consult the Material Safety Data Sheet for information regarding hazards and safe handling practices.
